A single DIN touchscreen stereo with backup camera can bring phone access and a rear view into one dashboard upgrade. To choose the right setup, evaluate the receiver and camera as a complete installation rather than assuming that a camera input makes every camera compatible.

For any car stereo upgrade, decide what you need the screen to show and how the image will appear. A useful plan identifies the camera, its mounting position, the cable route and the way the display switches to the rear view.

Check what the package actually includes

The S10C product page lists a rear camera and describes it as a 720P AHD model with a 140-degree view. Check the current configuration and package contents when ordering a single DIN touchscreen stereo with backup camera.

Avoid interpreting a display's specifications as camera specifications. The receiver's screen, the camera signal and the physical camera are different parts of the system. Also keep a reversing camera separate from a recording dash camera; a rear image on the screen does not establish that footage is recorded.

Read the package list before buying extra parts. Then have the installer identify anything specific to the car that is not supplied with the receiver.

Choose a camera position that can be tested

Discuss the mounting position before drilling or routing cables. Ask the installer how the camera will be secured, how its cable will enter the vehicle and how the route will avoid moving parts and damage.

At handover, view the image while the vehicle is stationary. Place a familiar object behind the car in a controlled area and compare its actual location with the image. Check the angle and understand what is outside the camera's view.

A rear camera supplements your normal observations. It does not show every possible hazard or replace checking around the vehicle before moving.

Treat the wiring as a complete system

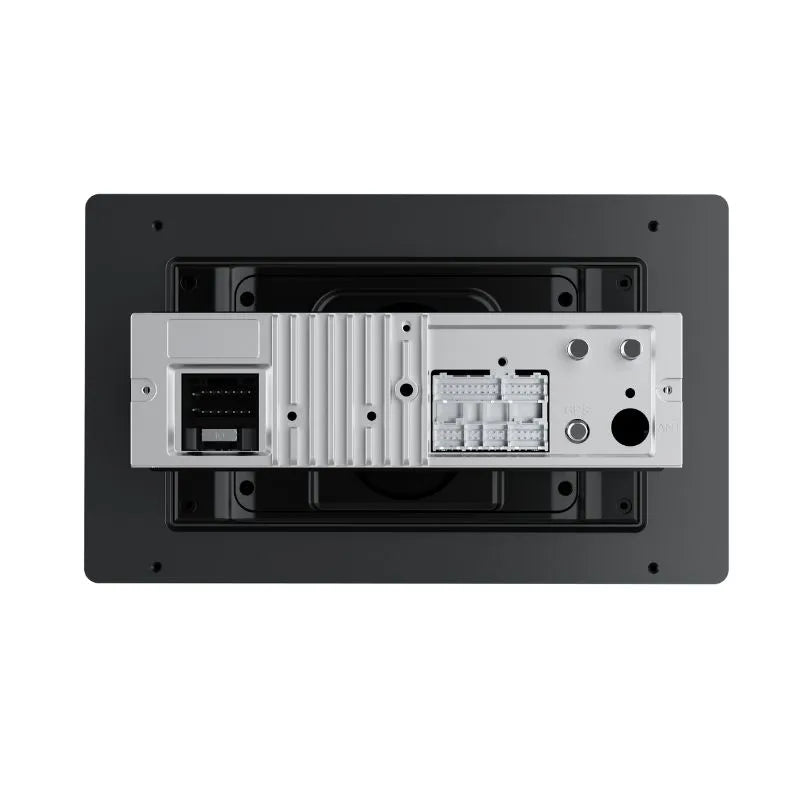

A working camera installation needs a suitable power arrangement, a compatible video connection and the intended reverse activation. Have all three identified for the exact receiver, camera and car.

The S10C manual contains the supplied-camera connection diagram. Use that diagram with the vehicle's wiring information. A generic online color-code list is not enough to confirm a particular installation.

The S10C installation guide helps you organize the questions for the installer. It is better to resolve the camera route and activation before the dashboard and rear trim are fully reassembled.

Can you keep the factory backup camera?

Do not assume so. The S10C documentation directs users toward the supplied camera when discussing incompatible factory cameras. Treat retaining an existing camera as an unverified project until a qualified installer confirms the exact arrangement with Haudio.

Ask for a clear answer covering the original camera, any interface required and the receiver input. If that solution cannot be verified, plan around the documented supplied-camera installation rather than promising to preserve the factory camera.

The same care applies to steering-wheel controls and factory amplifiers. Retaining one original function does not establish compatibility with another.

Check the screen from the driver's seat

When comparing a single DIN touchscreen stereo, think about where the camera image will appear after installation. The display should remain usable without interfering with the controls around it.

Run through the screen clearance checks with the final mounts and trim fitted. A camera upgrade does not solve a screen-position problem, and a larger display is not automatically a better fit for every dashboard.

What to test before leaving the installer

Confirm the rear image appears when intended and that normal receiver operation returns afterward. Check the image orientation and ask the installer to explain any displayed guide lines rather than assuming they are calibrated to the car.

If the view is blank, distorted or appears at the wrong time, note exactly what happens. Have the installer check the power, video compatibility and activation separately. Avoid changing unrelated phone settings to troubleshoot a camera issue.

Test the phone connection afterward using the CarPlay guide or the Android Auto guide. These are separate checks even though the same display is used.

Compare the finished cost

Camera mounting and routing can add work beyond replacing the receiver. Ask for that work to be included in the quote, along with any vehicle-specific parts.

Our stereo budget guide helps you compare the complete project. Before ordering, confirm the current camera package and give the installer the vehicle details. You will then be choosing a system with a defined installation plan, rather than relying on the phrase “backup camera compatible.”
