Description

Model: D10A
Screen Size:10.1 Inch
Output Power: 18W

  • Smart Connectivity with Wired & Wireless CarPlay / Android Auto
  • Powerful MT8163 Quad-Core Processor
  • Built-in GPS Navigation
  • Voice Control with Siri & Google Assistant
  • 720P AHD Rear Camera with 140° Wide View
  • Customizable App Freedom
  • DSP, EQ & ASP Audio Optimization
  • FM, AM, & RDS Radio Support
  • Split-Screen & Picture-in-Picture Mode
Package List
CVS1541A-AJ Car Stereo;Power Cable *1,Rear Camera Interface Cable *1,Reverse Trigger Cable *1,4-Pin USB Cable *1,20-Pin RCA Cable *1,GPS Antenna *1,Removal Tools *2,Rear Camera *1,Mounting Screws *8,User Manual *1

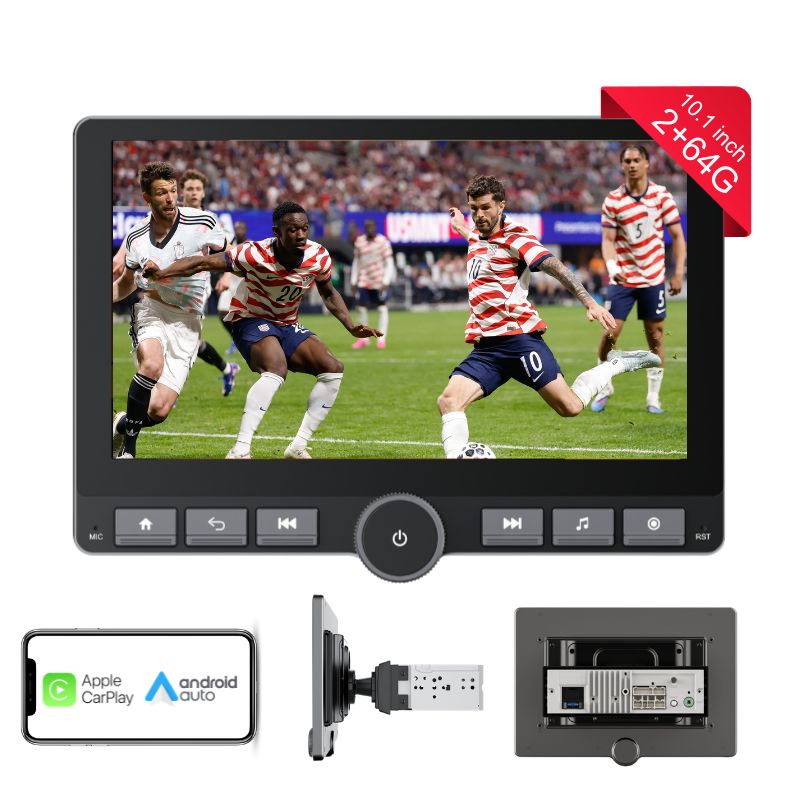

Haudio D10A 10.1" Single Din Car Stereo (CVS1541-AJ)

Floating Screen(±30° forward/backward), Wireless CarPlay & Android Auto, AHD Backup Camera, GPS Navigation, WIFI, 4-Core CPU, Split Screen Mode & FM/AM (2+64GB)

Regular price $151.99

(±30° in all directions

Apple CarPlay

Android Auto

720P Backup Camera

Siri & Google Voice Control

Excellent Sound Quality

Model: D10A
Screen Size:10.1 Inch
Output Power: 18W

  • Smart Connectivity with Wired & Wireless CarPlay / Android Auto
  • Powerful MT8163 Quad-Core Processor
  • Built-in GPS Navigation
  • Voice Control with Siri & Google Assistant
  • 720P AHD Rear Camera with 140° Wide View
  • Customizable App Freedom
  • DSP, EQ & ASP Audio Optimization
  • FM, AM, & RDS Radio Support
  • Split-Screen & Picture-in-Picture Mode
CVS1541A-AJ Car Stereo;Power Cable *1,Rear Camera Interface Cable *1,Reverse Trigger Cable *1,4-Pin USB Cable *1,20-Pin RCA Cable *1,GPS Antenna *1,Removal Tools *2,Rear Camera *1,Mounting Screws *8,User Manual *1
Haudio D10A 10.1" Single Din Car Stereo (CVS1541-AJ)

Built-In GPS Navigation

Navigate with confidence, no phone required.
The integrated GPS system provides accurate, real-time navigation, perfect for daily commutes or long road trips.

All directions Adjustable Rotating Screen

Enjoy perfect visibility from every angle.
The screen tilts up, down, left, and right up to 30°, allowing you to adjust the display for maximum comfort and safer driving in any seat position.

Premium Central Control Knob

Designed for elegance and precision.
The high-end central rotary knob delivers smooth, tactile control, combining luxury aesthetics with effortless operation while driving.

Wireless & Wired CarPlay / Android Auto

Stay connected your way.
Supports both wireless and wired Apple CarPlay & Android Auto, giving you instant access to navigation, music, calls, and apps without distraction.

All-in-One Radio System

More ways to listen, more freedom to enjoy.
Supports DSP, FM, AM, and RDS, delivering rich sound quality and broader station access wherever you drive.

HD Wide-Angle Backup Camera

Reverse with clarity and confidence.
Includes a 720P AHD rear camera with 140° wide-angle view, ensuring better visibility and safer parking in tight spaces.

Voice Control with Siri & Google Assistant

Hands-free control, smarter driving.
Use Siri or Google Assistant to make calls, send messages, control music, and navigate—keeping your focus on the road.

Quick Tips:

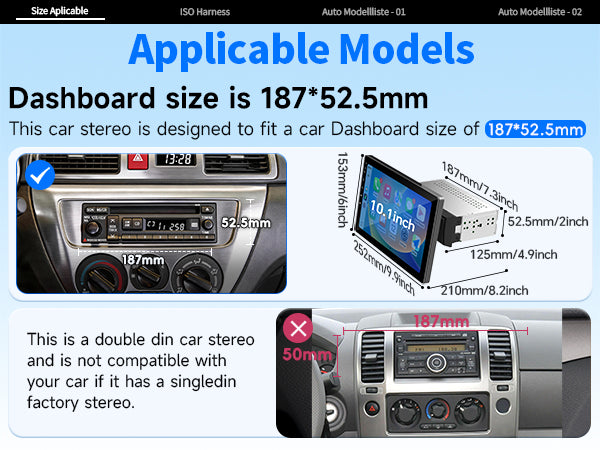

  1. Check your dashboard size to ensure it fits our stereo. If it doesn't, a separate dashboard kit is required.
  2. Read the manual first. Professional installation is highly recommended.

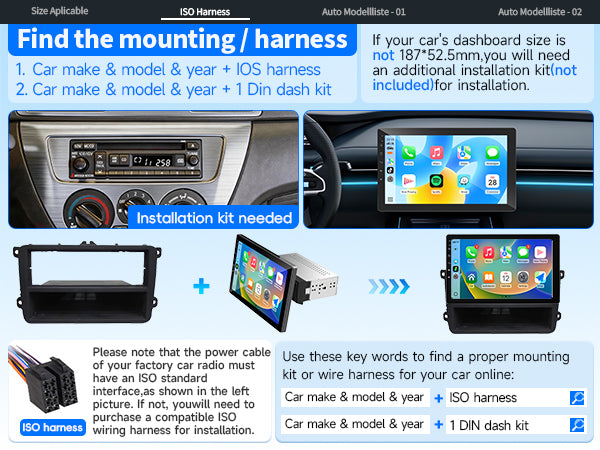

  3. Some vehicles may need a wiring harness adapter and a radio antenna adapter to complete the setup.

FAQs

Can GPS work without connecting to Wi-Fi?

Yes, but only after downloading offline maps.
Steps:

  1. Make sure the GPS antenna is properly connected
  2. Connect to Wi-Fi first and download offline maps
  3. GPS will work offline after maps are downloaded

Note: Without offline maps, GPS cannot function in offline mode.
For best performance, it is recommended to stay connected to Wi-Fi for real-time navigation.

Does this car stereo support steering wheel controls?

Yes, it supports steering wheel controls.

For vehicles with CANBUS support:

  • The unit comes with a dedicated power cable and CANBUS box (protocol module) for specific models
  • Connect the CANBUS to the unit’s CAN port,Configure via:Car Settings → Factory Settings → Password: 000000 → Vehicle Model Selection

For vehicles without CANBUS:

  • Connect any two of the three control wires (SW1, SW2, SW3) to KEY1 and KEY2 on the power cable
  • Set up learning mode:Car Settings → Steering Wheel Control Type → Select “Learning” → Steering Wheel Control → Confirm
Can I connect a CANBUS module to this stereo? Where do I get it?

About CANBUS connection:
The unit has a standard CAN port
CANBUS allows integration of:

  • Steering wheel controls
  • Air conditioning display
  • Factory parking sensors
  • Vehicle data

Important notes:
The CANBUS box must be used with a dedicated wiring harness, It connects to the unit via the CAN port

Purchase guidance:

CANBUS and wiring harness are not included,please purchase separately.

Recommended sources:

  • Local auto repair shops (best option)
  • Online stores (provide full vehicle details: brand, year, trim level)
What is the factory settings password?

The default factory password is 000000.

How do I change the speed unit from km/h to mp/h?

Go to:Car Settings → Factory Settings → Enter Password (000000) → Speed Unit → Select MP/H

How do I change the boot logo?

Logo requirements:

  • Resolution: 1024 × 600 pixels
  • File name: zxdzlogo
  • Format: PNG

Upgrade steps:

  1. Copy the logo file to a USB drive (root directory)
  2. Insert USB into the unit (4PIN or 6PIN USB port)
  3. Go to:Settings → System → About Device → Local Upgrade → Start Upgrade
Specifications
1280*720

Resolution:

Android13.0

Operating System:

4-Core

Processor:

18W

Output Power:

11-16V

Operating Voltage:

4.1

Bluetooth:

140°

Rearview Angle:

2.4GHz

WIFI:

25W

Power Consumption:
